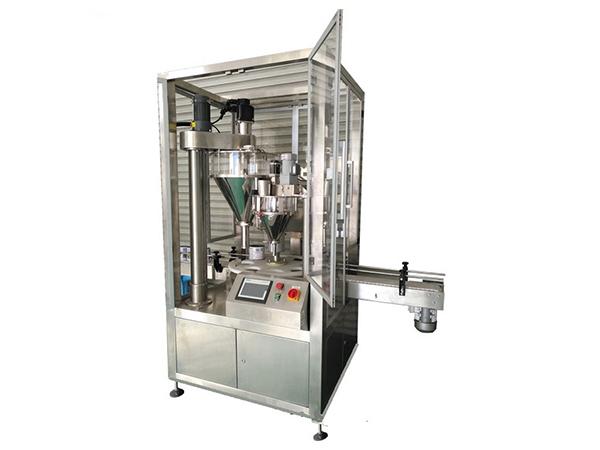

20g~3000g Automatic Powder Filling Machine

This product has been discontinued and removed from our shelves.

Application
20g~3000g automatic powder filling machine is a kind of dual workplace filling machine. The filling system is composed of main filling workplace and auxiliary filling workplace. Such kind of complementary filling system ensures high accuracy filling without any inferior. It can complete the tasks of can feeding automatically, filling and weighing. It can form a complete set of high speed and high precision fully automatic canning assembly line with other corollary equipment. It is applicable to powdered materials such as flour, milk powder, rice noodle, cocoa powder, solid drink, sugar, monosodium glutamate, veterinary drugs, flavor and fragrance.

Parameters
Model SY-2B3
Packaging Weight 20-3000g
Packaging Precision ≤±0.3-1g
Packaging Speed 30-60/min
Container Size Ø:50-150 H:50-260mm
Power Supply 380/220V 50-60Hz (TN-S)
Power 2.6kw
Gas Consumption 6kg/cm2 0.2cm3/min
Total Weight 700kg
Machine Dimension L2000×W1000×H2350mm

Characteristics
1.This kind of automatic powder filling machine is qualified by National GMP standards and food hygiene certification. The whole machine is made from stainless steel. (The raw material can be specified to 316L)

2. This kind of automatic powder filling machine is equipped with omniseal semi open type feed box which is made from glass and stainless steel. It can be cleaned easily without any tool.

3. The automatic powder filling machine adopts the touchscreen and PLC control technologies from Taiwan. It displays many desired properties such as high stability, resistance to interference, easy manipulation and long service life.

4. The filling process is driven by servo motor. It has many advantages such as accurate orientation, high accuracy, high speed (The rotation speed can be set manually.), large torque and high stability.

5. During the stirring process, the automatic powder filling machine adopts maintenance free speed reduction motor from Taiwan. It produces little noise and has long service life.

6. The working parameter configurations of product adjustment can be stored for later use. It can store 10 parameters at most.

7. This kind of automatic powder filling machine delivers packaging containers by conveyer belt. The orientation is realized by a turntable. It can complete the tasks of filling, weighing and inferior elimination automatically.
