Automatic Auger Filling Machine

The automatic auger filling machine carries out counting, filling, weighing feedback, defective goods removing and conveying. It can also be combined with other equipment sets to form a complete set of automatic filling production line. This filling machine is suitable for packaging of powder or granule materials such as flour, milk powder, feed, rice flour, cocoa powder, white sugar and more.

The following types of automatic auger filling machines are produced by Siyuan:

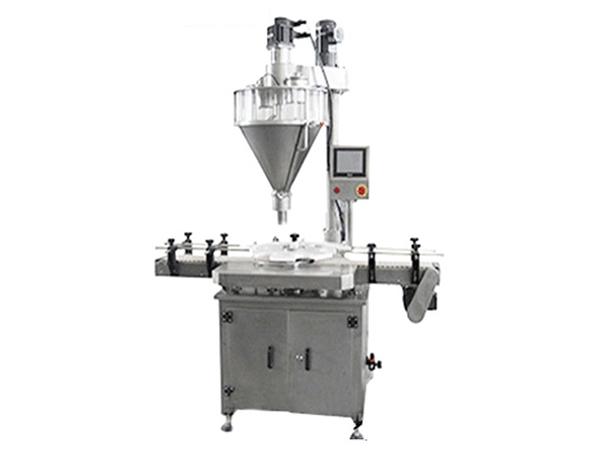

SY-A1 type single working position automatic auger filling machine
  • Semi Automatic Auger Filler
  • Semi Automatic Auger Filler
Type SY-A1 type
Packaging weight 10-500g
Packaging accuracy ≤±0.3-1g
Packaging speed 20-50/min
Container dimension Ø:50-100 H:50-200mm
Power supply 380/220V 50-60Hz(TN-S)
Power 1.7kw
Air consumption 6kg/cm2 0.15cm3/min
Total weight 260kg
Outline dimension L1600×W1000×H2300mm

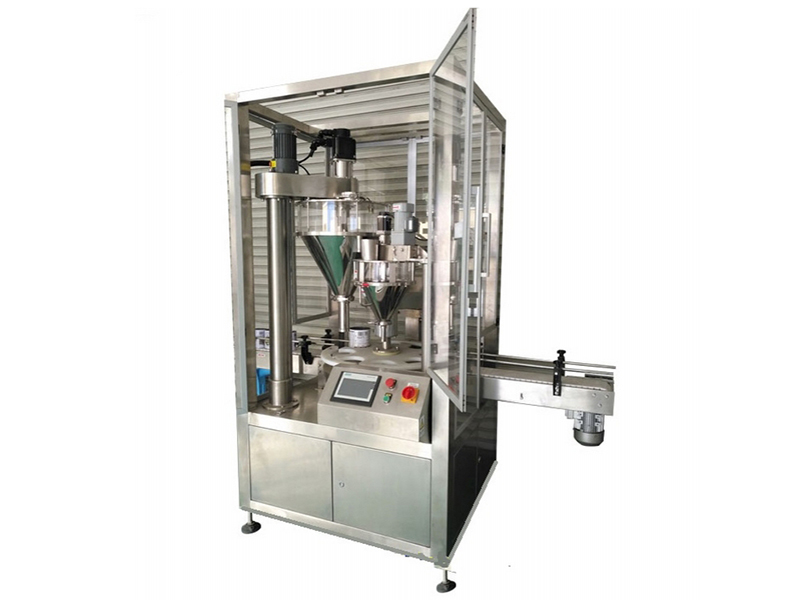

SY-A1 type dual working position automatic auger filling machine: The filling system has a main filling working position and auxiliary filling working position. The complementary filling system ensures a higher weighing accuracy.
  • Semi Automatic Auger Filler
  • Semi Automatic Auger Filler
Type SY-A2 type
Packaging weight 20-3000g
Packaging accuracy ≤±0.3-1g
Packaging speed 30-60/min
Container dimension Ø:50-150 H:50-260mm
Power supply 380/220V 50-60Hz(TN-S)
Power 2.6kw
Air consumption 6kg/cm2 0.2cm3/min
Total weight 700kg
Outline dimension L2000×W1000×H2350mm
Features
  • The automatic auger filling machine features a semi-transparent hopper made using glass and stainless steel. It can be disassembled and cleaned without the need for special tools.
  • It features a touch screen and PLC control produced by Taiwan, featuring a stable and easy operation, interference prevention, and a long service life.
  • The filling process is driven by a servo motor, which features an accurate positioning, high precision, fast speed (which can be set according to customer requirements), a large torque and excellent stability.
  • The mixing is carried out by a maintenance free gear motor from Taiwan. It has a low noise, long service life and maintenance free performance.
