Vertical Form Fill Seal Machine (Piston Filling)

The vertical form fill seal machine (piston filling) is the combination of a piston pump system and main machine. It carries out film transport and tension, bag forming, filling, weighing, sealing, cutting, counting and other functions. It is suitable for packaging of liquid materials.

The following are the packaging machine types produced by Siyuan:

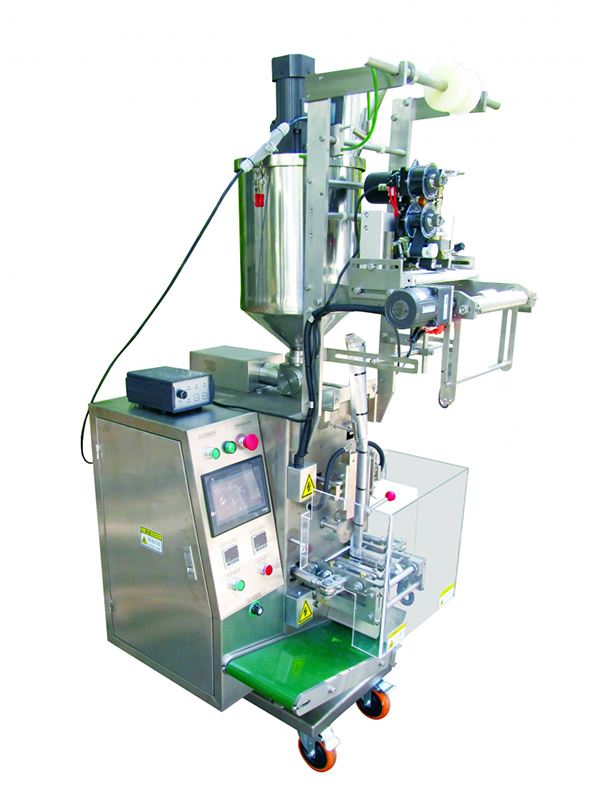

1) SYJ-240 3 side seal pouch/4 side seal pouch machinery
  • SYJ-240 3 side seal pouch/4 side seal pouch machinery
  • SYJ-240 3 side seal pouch/4 side seal pouch machinery
  • SYJ-240 3 side seal pouch/4 side seal pouch machinery
  • SYJ-240 3 side seal pouch/4 side seal pouch machinery
Sachet Type 3 side seals/4 side seals
Sachet Width 30-120mm
Sachet Length 30-170mm
Measurement Range 0-100ml
Speed 40-60 sachets/minute
Power Supply 220V 50-60HZ
Power 1400W
Net Weight 200KG
Dimension of the Machine 800x1200x1700mm

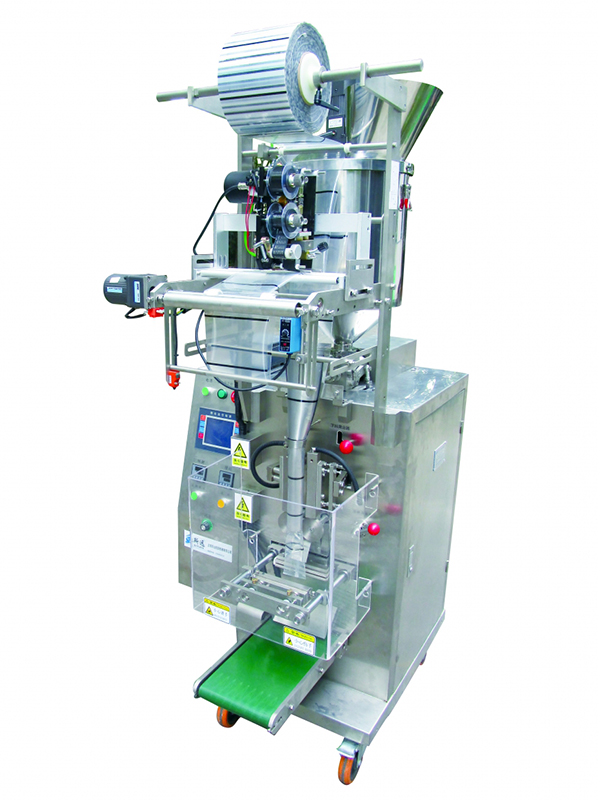

2) SYJ-300 3 side seal pouch/4 side seal pouch/pillow pack machinery
  • SYJ-300 3 side seal pouch/4 side seal pouch/pillow pack machinery
  • SYJ-300 3 side seal pouch/4 side seal pouch/pillow pack machinery
  • SYJ-300 3 side seal pouch/4 side seal pouch/pillow pack machinery
  • SYJ-300 3 side seal pouch/4 side seal pouch/pillow pack machinery
Sachet Type 3 side seals /4 side seals/pillow pack
Sachet Width 30-150mm
Sachet Length 30-170mm
Measurement Range 1-150ml
Speed 40-60 sachets/minute
Power Supply 220V 50-60HZ
Power 1700W
Net Weight 250KG
Dimension of the Machine 920x1200x1700mm

Applicable industry
The vertical form fill seal machine (piston filling) is suitable for packaging of liquid and paste products.
Liquid: alcohol, oil, soy sauce, vinegar etc.
Paste: shampoo, jam, facial cream, honey etc.

Package material
The vertical form fill seal machine (piston filling utilizes a variety of composite membrane types, including PET/PE, Paper/PE, PET/AL/PE, OPP/PE, PET/APET/PE, BOPP/PE

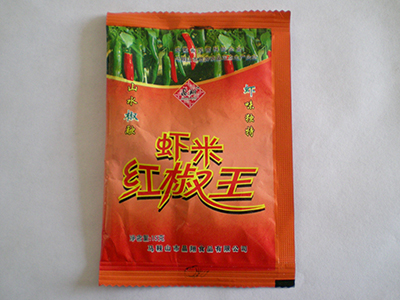

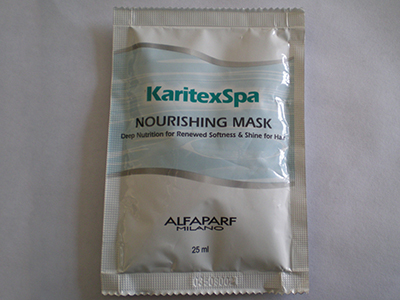

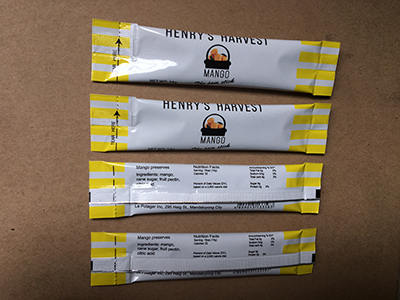

Packaging bag style
  • 2 side seal pouch2 side seal pouch
  • 4 side seal pouch3 side seal pouch
  • 4 side seal pouch4 side seal pouch
  • 4 side seal pouch4 side seal pouch
