Rotary Pouch Fill Seal Machine

  • Rotary Pouch Fill Seal Machine

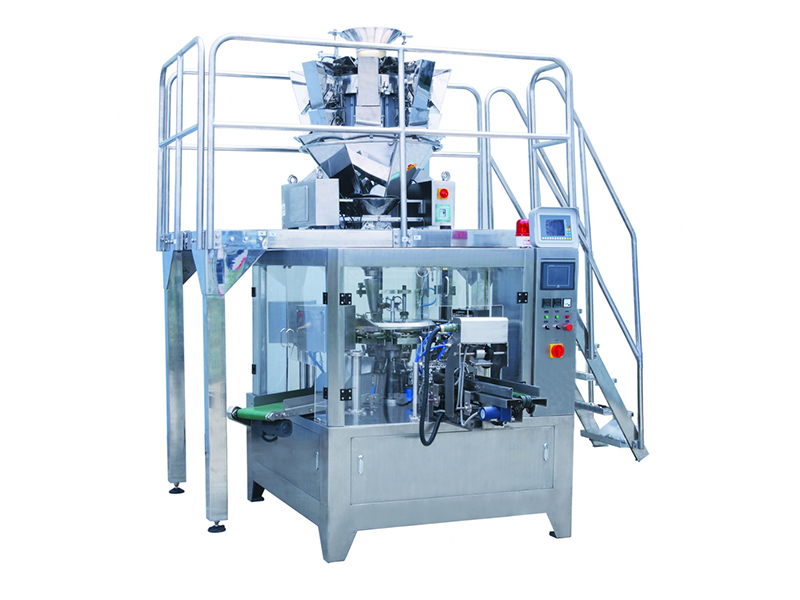

    Rotary pouch fill seal machine combined with multihead weigher
  • Rotary Pouch Fill Seal Machine

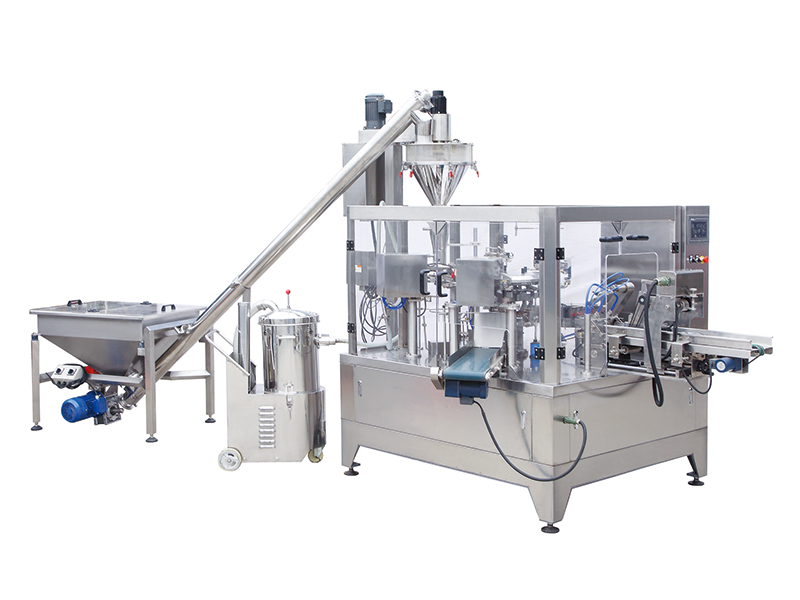

    Rotary pouch fill seal machine combined with automatic weigher

The rotary pouch fill seal machine can be used for automatic weighing and packaging of different materials such as granules, powder, liquid and paste after being equipped with different weighers (multihead weigher, automatic weigher). When the packaging bags are stacked at a fixed position, the machine will carry out automatic packaging bag picking via suction cup, packaging bag opening, filling, sealing and automatic finished product delivery.

Premade packaging bag styles:
Flat bottom bag, zippered flat bottom bag, 3 side seal pouch, 4 side seal pouch

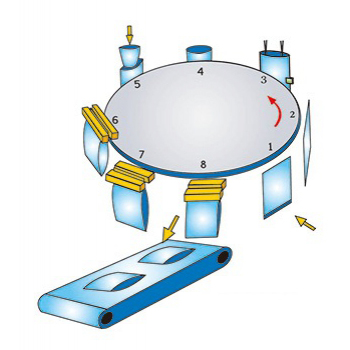

Working procedure
Rotary Pouch Fill Seal Machine


1. Packaging bag picking
2. marking
3. zipper opening
4. bag opening from both top and bottom side
5. filling
6. reserving
7. air discharging and heat sealing
8. output


Applicable material:
The rotary pouch fill seal machine can be used for packaging of candy, chip, jelly, biscuit, medicine, ketchup, fertilizer, pesticides and more.

The following types of rotary pouch fill seal machines are produced by Siyuan:
Type SYG-200 SYG-250 SYG-300
Working positions 8 working positions 8 working positions 8 working positions
Packaging bag dimensions (W*L) 100-210mm*100-350mm 150-260mm *150-350mm 200-300mm*200-450mm
Speed 10-50 bags/min 10-40 bags/min 10-40 bags/min
Weight 1200KG 1400KG 1500KG
Power supply 380V/ 3phase/50HZ/60HZ 380V/ 3phase/50HZ/60HZ 380V/ 3phase/50HZ/60HZ
Power 3KW 3KW 3KW
Details of Rotary Pouch Fill Seal Machine
  • Rotary Pouch Fill Seal Machine
  • Rotary Pouch Fill Seal Machine
  • Rotary Pouch Fill Seal Machine
  • Rotary Pouch Fill Seal Machine
