Application

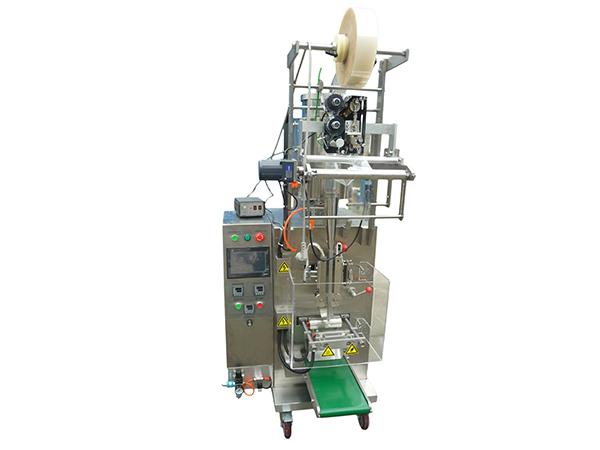

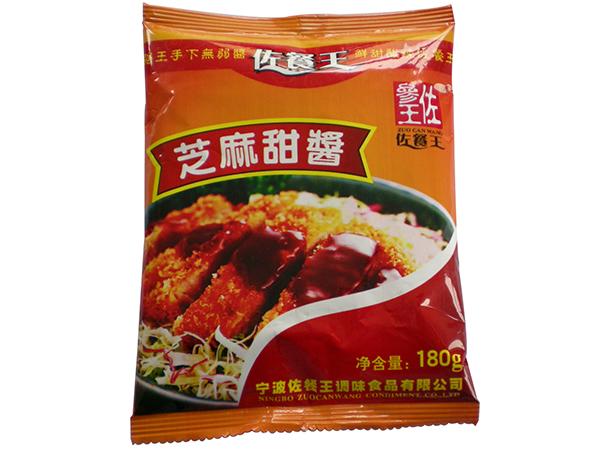

SYJ-300 back seal liquid packaging machine mainly produces back seal packages. The packages seal at the top and the bottom. There is also a seal at the middle of the back. At the present there are many lathy packages which are back seal packages. It's widely used in the packaging of tomato sauce, honey, shampoo, face cream, oil and vinegar.
Parameters
The maximum width of films of SYJ-240 and SYJ-300 are 240mm and 300mm respectively.
| Model | SYJ-300 |
| Package Type | Back Seal |
| Package Width | 30-140mm |
| Package Length | 30-170mm |
| Measurement Method | Measuring Cup |
| Measurement Range | 1-150ml |
| Packaging Speed | 30-60 packages/min |
| Power Supply | 220V 50HZ |
| Power | 2145W |
| Net Weight | 250KG |
| Machine Dimension | 850x750x1700 |
Characteristics
Back seal liquid packaging machine is equipped with two optional kinds of blades: serrated-edge blade and plain edge blade. The edges of sachets cut by serrated-edge blade are saw-toothed and those cut by plain edge blade are flat cutting surfaces.
According to the demands of different customers, there are the following optional devices:
1. Ribbon printer; 2. Batch cutting device; 3. Straight cutter; 4. Air expeller; 5. Round hole; 6. Euro hole; 7. Vibrator; 8. Auger feeding machine; 9. Air flushing
