Application

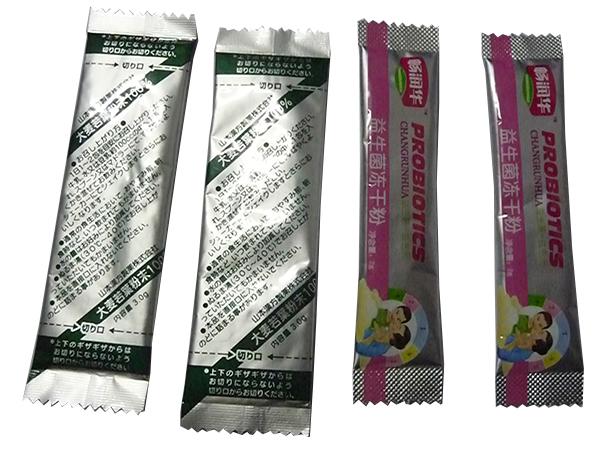

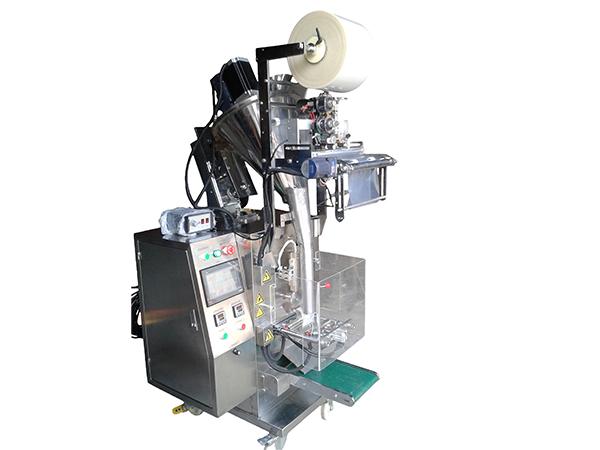

SYF-300 series of back seal packaging machine mainly produces back seal sachets. The sachets are sealed at both the top and the bottom. There is also a seal at the middle of the back of the sachet. At the present many lathy sachets are of back seal type which are applicable to many kinds of powder such as flour, milk shake powder, protein powder, seasoning powder and milk powder.
Parameters
SYF-300 series of back seal packaging machine can package powder weighing from 1-350ml.
| Model | SYF-300 |
| Sachet Type | Back sealing |
| Sachet Width | 30-140mm |
| Sachet Length | 30-170mm |
| Measurement Method | Auger type |
| Measurement Range | 1-350ml |
| Speed | 30-60 sachets/min |
| Power Supply | 220V 50HZ |
| Power | 2145W |
| Net Weight | 250KG |
| Dimension of the Machine | 850x750x1700 |
Characteristics
This kind of back seal packaging machine is applicable to all kinds of powder. It is equipped with two optional kinds of blades: serrated-edge blade and plain edge blade. The edges of sachets cut by serrated-edge blade are saw-toothed and those cut by plain edge blade are flat cutting surfaces.
According to the demands of our clients, there are following optional devices:
1. Ribbon printer; 2. Batch cutting device; 3. Straight cutter; 4. Air expeller; 5. Round hole; 6. Euro hole; 7. Vibrator; 8. Auger feeding machine; 9. Air flushing
