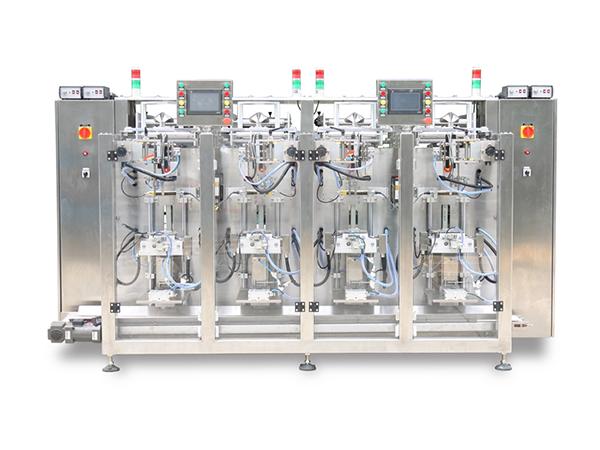

Application

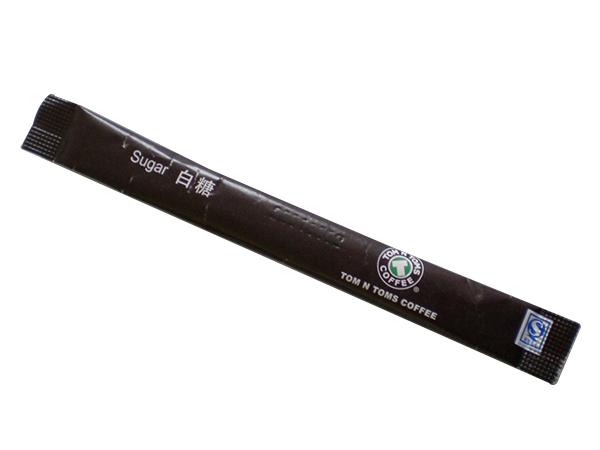

SYK-200F granule packaging machine is used in the packaging of strip shaped rounded corner sachets. There are four feeding channels. The packaging speed is 10-30 sachets per minute. They are widely used in the packaging of coffee, medicinal granule, sugar, monosodium glutamate and flavorings.
| Model | SYK-200F |
| Sachet Type | Back seal, Three side seal, Four side seal |
| Sachet Width | 20-70mm |
| Sachet Length | 50-180mm |
| Measurement Method | Measuring Cup |
| Measurement Range | 1-80ml / 10-350ml |
| Packaging Speed | 10-30 sachets/min(Single channel) |
| Power Supply | 220V 50HZ |
| Power | 3000W |
| Net Weight | 350KG |
| Machine Dimension | 1018x1328x1709mm |
Characteristics
1. This kind of granule packaging machine adopts four parallel feeding channel which greatly saves the operating space and raises efficiency. When one channel fails, the other one can still work properly.
2. This kind of granule packaging machine adopts PLC control. It's easy to operate on. It's also equipped with intelligent temperature control instrument. The seal is quite smooth and beautiful. There is photoelectric switch which follows the color code automatically and can make cuts accurately.
3. According to the demands of our customers, this kind of granule packaging machine can choose to be equipped with air charging system.
