Application

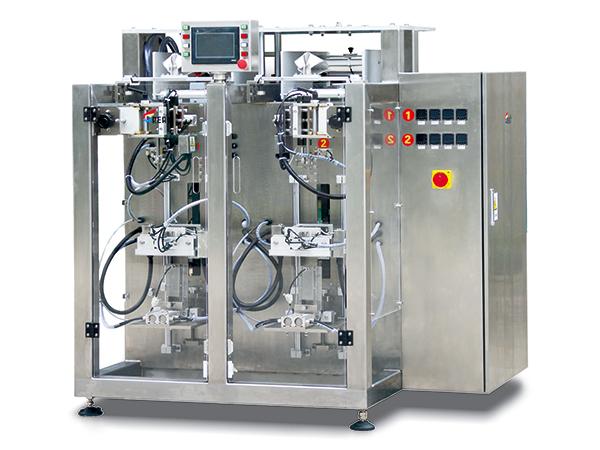

SYK-200B granule packaging machine is used to produce strip shaped rounded corner packaging bags which are widely used in the packaging of flour, milk shake powder, protein powder, flavoring powder and milk powder.
| Model | SYF-200BS |
| Packaging Bag Type | Strip shaped packaging bag,Strip shaped rounded corner packaging bag |
| Packaging Bag Width | 20-70mm |
| Packaging Bag Length | 50-180mm |
| Measurement Method | Screw |
| Measurement Range | 1-80ml |
| Packaging Speed | 10-30 packaging bags/min(Single channel) |
| Power Supply | 220V 50HZ |
| Power | 3000W |
| Net Weight | 350KG |
| Machine Dimension | 1018x1328x1709mm |
Characteristics
1. This kind of granule packaging machine adopts two parallel feeding channel which greatly saves the operating space and raises efficiency. When one channel fails, the other one can still work properly.
2. This kind of granule packaging machine adopts PLC control. It's easy to operate on. It's also equipped with intelligent temperature control instrument. The seal is quite smooth and beautiful. There is photoelectric switch which follows the color code automatically and make cuts accurately.
3. According to the demands of our customers, our granule packaging machine can choose to be equipped with air charging system.
