Application

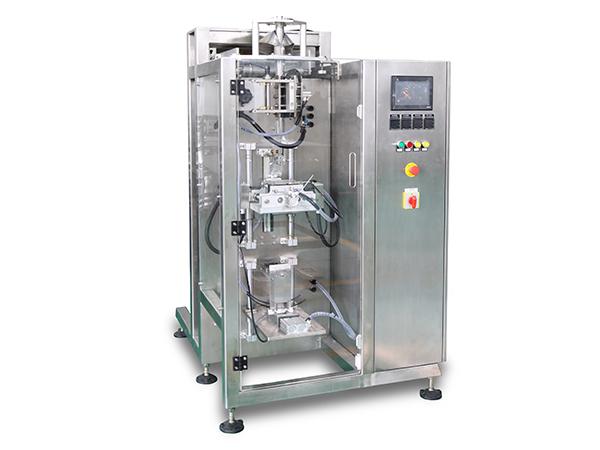

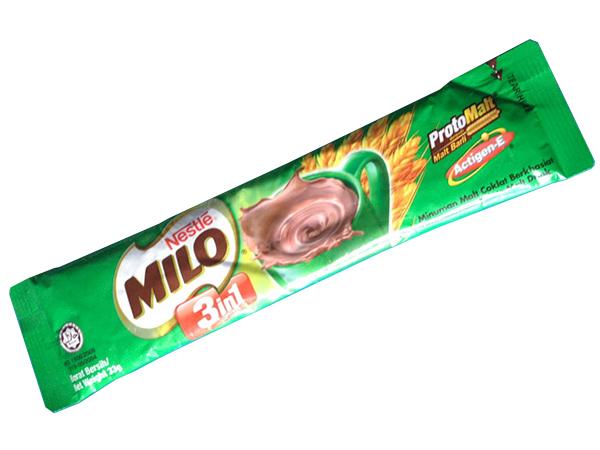

SYK-200 granule packaging machine mainly produces back seal sachets, stripe shaped rounded corner sachets, three side seal sachets and four side seal sachets. Currently most lathy sachets on the market are back seal sachets, some of which have punch fillet seals. It's applicable to the packaging of granule with high fluidity such as coffee, sugar, monosodium glutamate and flavoring.
| Model | SYK-200 |
| Sachet Type | Back seal, three side seal and four side seal |
| Sachet Width | 20-120mm |
| Sachet Length | 50-180mm |
| Measurement Method | Cup type |
| Measurement Range | 1-80ml / 10-350ml |
| Packaging Speed | 10-50 sachets/min |
| Power Supply | 220V 50HZ |
| Power | 3000W |
| Net Weight | 350KG |
| Machine Dimension | 1018x1328x1709mm |
Characteristics
1. This kind of granule packaging machine can work with measurement cups to form granule packaging machine.
2. The granule packaging machine is equipped with two optional kinds of blades: serrated-edge blade and plain edge blade. The edges of sachets cut by serrated-edge blade are saw-toothed and those cut by plain edge blade are flat cutting surfaces.
3. This kind of granule packaging machine adopts PLC control which makes it easy to operate on. It's also equipped with intelligent temperature control instrument. The seal is quite smooth and beautiful. There is photoelectric switch which follows the color code automatically and can make cuts accurately.
According to the demands of different customers, there are the following optional devices:
1. Ribbon printer; 2. Batch cutting device; 3. Straight cutter; 4. Air expeller; 5. Round hole; 6. Euro hole; 7. Vibrator; 8. Auger feeding machine; 9. Air flushing
